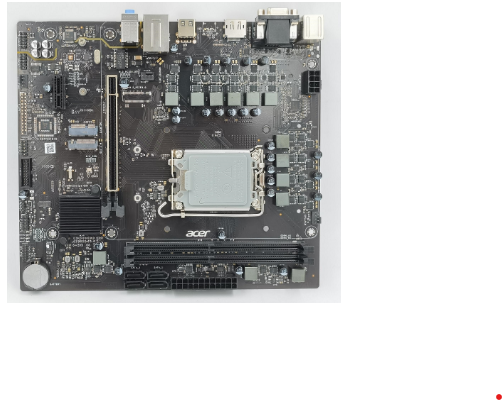

H610M-SE/2HNV

  • Supports 12th Gen Intel Core Processors (LGA1700)
  • 6 Phase Power Design
  • Supports DDR4 3200MHz
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: 2 HDMI 1.4 & 1 DP1.4a
  • 7.1 CH HD Audio Codec
  • 4 SATA3
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 USB 2.0 (4 Rear, 2 Front)
  • LAN Port

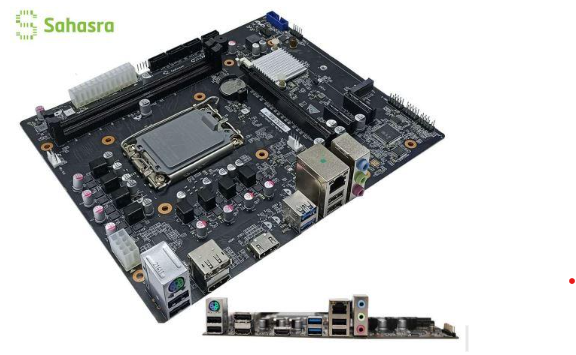

H610M-SE/HDV-W

  • Supports 12/13/14th Gen Intel® Core™ Processors (LGA1700)
  • 6 Phase Power Design
  • Supports 2 x DDR4 3200MHz
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: 2 HDMI 1.4 & 1 DP1.4a
  • Realtek ALC897 7.1 CH HD Audio Code
  • 3 SATAIII, 1 M.2 Gen3
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 5 USB 2.0 (3 Rear, 2 Front)
  • LAN Port
  • 1 x HDMI Port , 1 x DP Port，1 x VGA Port

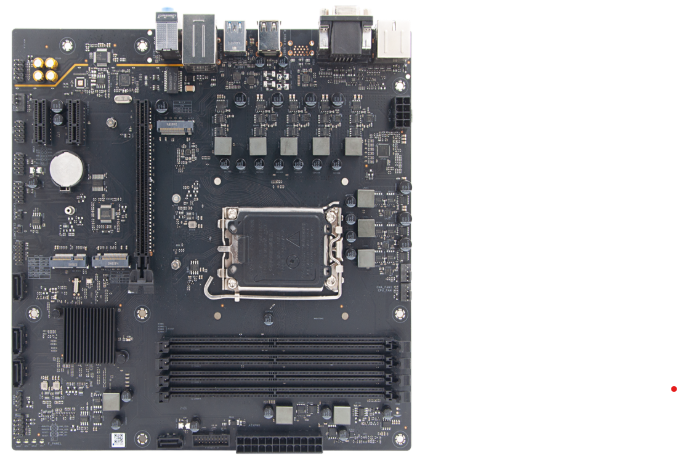

SE-Q670M-D4_2H1DV (Micro ATX)

  • Supports 12th/13th/14th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® vPro™ Technology
  • Supports Intel® Core™ i9/ i7/ i5/ i3/ Pen�um® /Celeron® Processors Max. 125W TDP
  • Micro ATX Form Factor: 24.4*24.4cm
  • Supports 4 x DDR4 3600MHz up to 128GB Q670
  • 1 x Ultra M.2 Socket (M2_1, Key M), 2242/2280 PCIe Gen4x4 (32 Gb/s) modes
  • 1 x Ultra M.2 Socket (M2_2, Key M), 2242/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors
  • 1 x DisplayPort1.2 & 2 x HDMI1.4 & 1 x VGA
  • Realtek ALC897 7.1 CH HD Audio Code (1 x Line in + Front Speaker + Microphone)
  • 1 x PCIe 4.0 x16 For CPU & 2 x PCIe 3.0 x1 for PCH
  • 3 x USB3.2 Gen1 5G & 2 x USB2.0 & 1 x Type-C Gen1

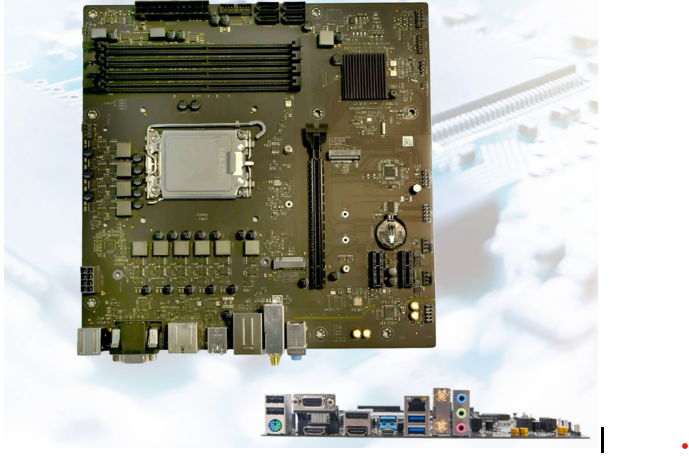

SE-Q670M-D5_2H1DV (Coming Soon)

  • Supports 12th/13th/14th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® Core™ i9/ i7/ i5/ i3/ Pen�um® /Celeron® Processors Max. 125W TDP.
  • Micro ATX Form Factor: 24.4*24.4cm
  • Supports 4 x DDR5 5600MHz
  • 1 x Ultra M.2 Socket (M2_1, Key M), 2242/2280 PCIe Gen4x4 (32 Gb/s) modes
  • 1 x Ultra M.2 Socket (M2_2, Key M), 2242/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • 4 x SATA3 6.0 Gb/s Connectors
  • 1 x DisplayPort1.2 & 2 x HDMI1.4 & 1 x VGA
  • Realtek ALC897 7.1 CH HD Audio Code (1 x Line in + Front Speaker + Microphone)
  • 1 x PCIe 4.0 x16 For CPU & 2 x PCIe 3.0 x1 for PCH
  • 3 x USB3.2 Gen1 5G & 2 x USB2.0 & 1 x Type-C Gen1

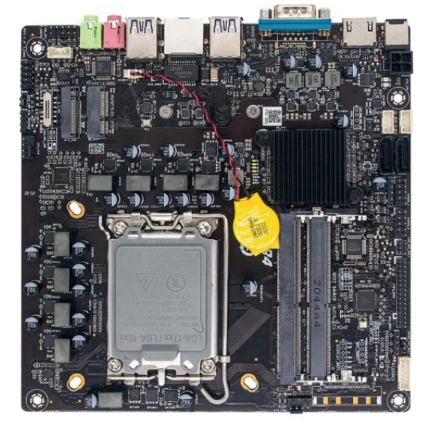

SE-PH610-D4 (Mini-ITX)

Supports 12/13th Gen Intel core i9, i7, i5, i3, Pentium, Celeron Processor
