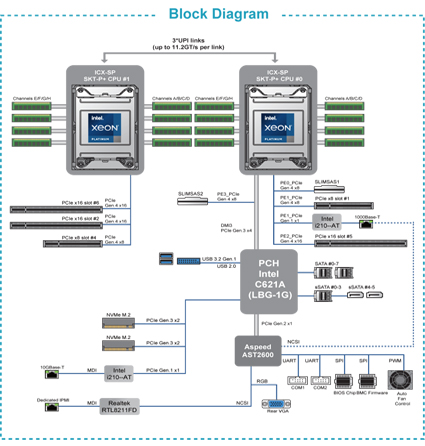

| Processor |
Q'ty / Socket Type |
(2) LGA4189 |
| Supported CPU Series |
250nits |
| Thermal Design Power Wattage |
Max up to 270W (TDP) |
| System Bus |
Up to 11.2/10.4 GT/s with Intel UltraPath Interconnect (UPI) support |
| Chipset |
PCH |
Intel C621A |
| Memory |
Supported DIMM Qty |
(8)+(8) DIMM slots |
| DIMM Type / Speed |
DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 |
| Capacity |
Up to 2,048GB RDIMM/ 4,096GB LRDIMM/ 4,096GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
| Memory Channel |
8 Channels per CPU |
| Memory voltage |
1.2V |
| Expansion Slots |
PCIe |
(2) PCIe Gen.4 x8 slots / (3) PCIe Gen.4 x16 slots |
| LAN |
Q'ty / Port |
(2) GbE ports + (1) GbE dedicated for IPMI |
| Controller |
Intel I210-AT |
| PHY |
Realtek RTL8211E |
| Storage SATA |
Connector |
(2) SATA / (3) Mini-SAS (12 ports) / (totally support 14 ports) |
| Controller |
Intel C621A |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe interface) |
| Connector (U.2) |
(2) SFF-8654 for (4) NVMe ports |
| Notification |
Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information. |
| Storage (Optional) |
VROC Support |
Yes |
| Graphic VGA |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920x1200 |
| Chipset |
Aspeed AST2600 |
| Input /Output |
USB |
(2) USB3.0 ports ( @ rear) |
| COM |
(2) headers |
| VGA |
(1) D-Sub 15-pin VGA port (@ rear) |
| RJ-45 |
(2) GbE ports + (1) GbE dedicated for IPMI |
| Front Panel |
(1) 2x12-pin SSI front panel header |
| SATA |
(3) Mini-SAS HD from PCH SATA-III |
| Power |
SSI 24-pin + 8-pin + 8-pin power connectors |
| Others |
(1) ID button |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| System Monitoring |
Chipset |
Aspeed AST2600 |
| FAN |
Total (5) 4-pin headers |
| Temperature |
Monitors temperature for CPU, memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2600 |
| AST2600 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2600 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5 |
| Physical Dimension |
Form Factor |
SSI EEB compatible |
| Board Dimension |
12.2” x 13.04” (309.8 x 331.2mm) |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| RCM |
Class A |
| VCCI |
Class A |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
RoHS 6/6 Compliant |
Yes |
| Operating System |
OS Support list |
Please refer to our AVL support lists. |
| Package Contains |
Motherboard |

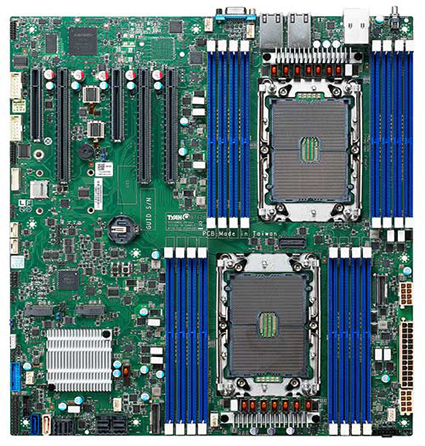

(1) S7120 Motherboard |
| Manual |
(1) Quick Installation Guide |
| I/O Shield |
(1) I/O Shield |
| Cable SATA |
(2) SATA signal cables |
