Tomcat CX S8050

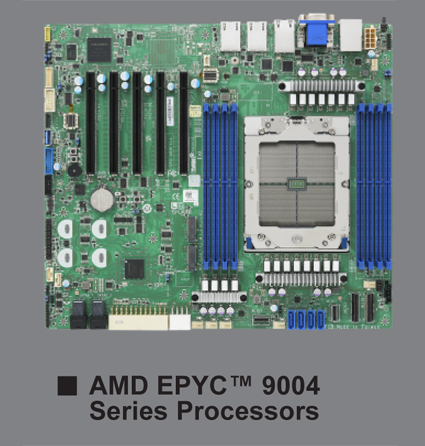

AMD EPYC 9004 SERVER MOTHERBOARD
Tempest CX S8050
- • Single SP5 Socket, supporting (1) AMD EYPC 9004 Processor
- • (8) RDIMM/3DS RDIMM DDR5 4800, Up to 2048GB RDIMM/3DS RDIMM
- • (5) PCI-E Gen5 x16 slots
- • CEB 12” x 10.5”
Summary Table
| SKU | Storage | Networking |
|---|---|---|
| S8050GM2NE | (12) SATA + (4) NVMe + (2) M.2 | (2) GbE + (1) IPMI |
| S8050GM4NE-2T | (12) SATA + (4) NVMe + (2) M.2 | (2) 10GbE + (2) GbE + (1) IPMI |
| Processor | Q'ty / Socket Type | (1) AMD Socket SP5 |
| Supported CPU Series | (1) AMD EPYC™ 9004 Series Processor | |
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 400W (cTDP) | |
| Memory | Supported DIMM Q'ty | (8) DIMM slots |
| DIMM Type / Speed | RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / LRDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC | |
| Capacity | Up to 2,048GB RDIMM/ 4,096GB LRDIMM/ 4,096GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | |
| Memory Channel | 8 Channels per CPU | |
| Memory voltage | 1.1V | |
| Expansion Slots | PCIe | (5) PCIe Gen.5 x16 slot |
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI |
| Controller | Intel I210-AT | |
| PHY | Realtek RTL8211F | |
| Storage SATA | Connector | (12) SATA |
| Controller | Direct from AMD EPYC CPU | |
| Speed | 6Gb/s | |
| RAID | NA | |
| Storage NVMe | Connector (U.2) | (2) MCIO x4 / (2) MCIO x8 |
| Connector (M.2) | (2) 22110/2280 (by PCIe Gen.4 interface) | |
| Graphic | Connector type | D-Sub 15-pin |
| Resolution | Up to 1920X1080 @60Hz | |
| Chipset | Aspeed AST2600 | |
| Input /Output | NVMe | (2) MCIO x4 / (2) MCIO x8 |
| USB | (2) USB3.2 Gen.1 ports | |
| COM | (1) DB-9 COM Connector | |
| VGA | (1) D-Sub 15-pin port | |
| Power | (2) 2x4 Power input connectors (1) 2x12 Power input connectors |
|
| RJ-45 | (2) GbE ports + (1) GbE dedicated for IPMI | |
| Front Panel | (1) 2x12-pin SSI front panel header | |
| SATA | (2) Mini-SAS HD (SFF-8643) connectors / (4) 7-pin SATA connectors | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| Interface | SPI | |
| System Monitoring | Chipset | Aspeed AST2600 |
| FAN | Total (6) 4-pin headers | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| Temprature | Monitors temperature for CPU & system environment | |
| LED | Fan fail LED indicator / Over temperature warning indicator | |
| Others | Watchdog timer support | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) /10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 256MB |
| Feature | Hardware Monitor / FAN speed control automatic / Boot fromUSB device/PXE via LAN/Storage / Console Redirection /SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S0, S5 | |
| Physical Dimension | Form Factor | SSI EEB compatible |
| Board Dimension | 12” x 10.5” (305 x 267mm) | |
| Regulation | FCC (SDoC) | Class A |
| CE (DoC) | Class A | |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS Support list | Please refer to our OS support lists. |
| Package Contains | Motherboard | (1) S8050 Motherboard |
| Manual | (1) Quick Installation Guide | |
| I/O Shield | (1) I/O Shield | |
| Cable SATA | (2) SATA signal cables |
