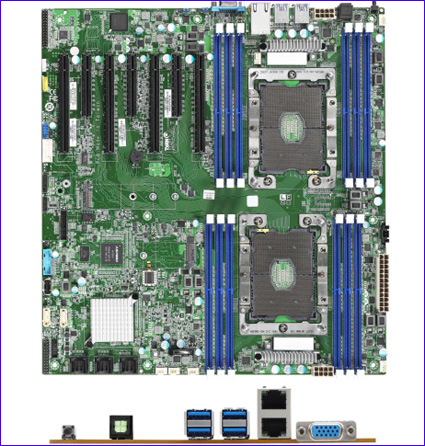

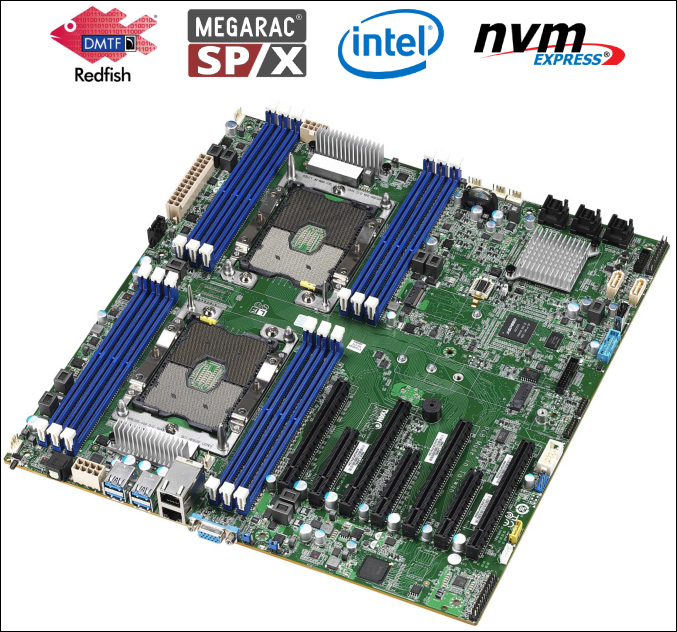

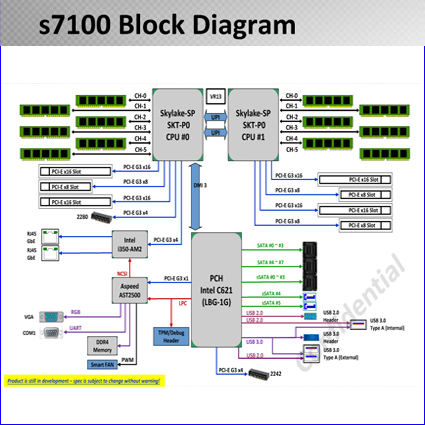

Motherboard Intel® S7100
Dual Socket Xeon SP / 12 DIMMs / 4 PCIe x16 / Workstation & Server Variants
Model Name : Intel S7100
- • 12" x 13" SSI EEB Form Factor
- • Dual socket 2nd Gen Xeon Scalable Processor Family
- • (12) DIMM slots supporting up to 1.5TB DDR4 RAM
- • (4) PCIe x16 slots with support for 4 GPU cards
- • (3) PCIe x8 slots
- • (14) SATA ports
- • (2) NVMe M.2 ports
- • Optional 7.1 Channel HD Audio
- • Optional AST2500 BMC with IPMI 2.0 and Redfish
| Processor | Q'ty / Socket Type | (2) LGA3647 |
| Supported CPU Series | 2nd Gen Intel Xeon Scalable Processor | |
| Thermal Design Power Wattage | Max up to 205W (TDP) | |
| System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | |
| Chipset | PCH | Intel C621 |
| Memory | Supported DIMM Qty | (6)+(6) DIMM slots |
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM) | |
| Capacity | Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | |
| Memory Channel | 6 Channels per CPU | |
| Memory voltage | 1.2V | |
| Notification | DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. | |
| Expansion Slots | PCIe | (3) PCIe Gen.3 x8 slots / (4) PCIe Gen.3 x16 slots |
| LAN | Q'ty / Port | (2) GbE ports (1 port shared with IPMI) |
| Controller | Intel I350-AM2 | |
| Storage SATA | Connector | (2) Mini-SAS HD (8 ports) |
| Controller | Intel C621A | |
| Speed | 6Gb/s | |
| RAID | RAID 0/1/10/5 (Intel RSTe) | |
| Storage sSATA | Connector | (2) SATA-DOM / (1) Mini-SAS HD (4-ports) |
| Controller | Intel C621 | |
| Speed | 6Gb/s | |
| RAID | RAID 0/1/10/5 (Intel RSTe) | |
| Storage NVMe | Connector (M.2) | (1) 2242 (by PCIe interface) / (1) 2280/2260/2242 (by PCIe interface) |
| Notification | Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information. | |
| Graphic VGA | Connector type | D-Sub 15-pin |
| Resolution | Up to 1920x1200 | |
| Chipset | Aspeed AST2500 | |
| Input /Output | USB | (3) USB2.0 ports (2 via cable, 1 Type-A) / (6) USB3.0 ports (4 @ rear, 2 via cable) |
| COM | (1) header | |
| VGA | (1) D-Sub 15-pin VGA port (@ rear) | |
| RJ-45 | (2) GbE ports | |
| Front Panel | (1) 2 x 5 header | |
| Audio | (1) SPDIF OUT Connector / (1) 26-pin 7.1 ch HD Connector | |
| SATA | (3) Mini-SAS (4-in-1) connectors / (2) SATA/SATA-DOM connectors | |
| Power | SSI 24-pin + 8-pin + 8-pin power connectors | |
| Others | (1) ID button | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| System Monitoring | Chipset | Aspeed AST2500 |
| FAN | Total (6) 4-pin headers | |
| Temperature | Monitors temperature for CPU, memory & system environment | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator | |
| Others | Watchdog timer support | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 32MB |
| Feature | ardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5 | |
| Physical Dimension | Form Factor | SSI EEB compatible |
| Board Dimension | 12.2” x 13.04” (309.8 x 331.2mm) | |
| Regulation | FCC (SDoC) | Class B |
| CE (DoC) | Class B | |
| RCM | Class B | |
| VCCI | Class B | |
| Operating Environment | Operating Temp. | 0° C ~ 55° C (32° F~ 131° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS Support list | Please refer to our AVL support lists. |
| Package Contains | Motherboard | (1) S7100 Motherboard |
| Manual | (1) Quick Installation Guide | |
| I/O Shield | (1) I/O Shield | |
| Cable SATA | (2) SATA signal cables |
S7100 OS Compatibility List
Windows
- ✔ Windows 10 1703x64
- ✔ Windows 10 1709x64
- ✔ Windows 2012 R2 Update
- ✔ Windows 2016
- ✔ Windows 2019 1809
Linux
- ✔ FreeBSD 11.1 X64
- ✔ Ubuntu 17.04 X64
- ✔ Ubuntu 20.04.4 LTS
- ✔ CentOS 7 1611 X64
- ✔ CentOS 7 1708 X64
- ✔ CentOS 7 1908 X64
- ✔ CentOS 8 1905 X64
- ✔ CentOS Stream 9
- ✔ SLES 11 SP4 X64
- ✔ SLES 12 SP2 X64
- ✔ RHEL 6.9 X64
- ✔ RHEL 7.3 x64
- ✔ RHEL 7.4 x64
- ✔ RHEL 7.5 X64
- ✔ RHEL 7.6 X64
- ✔ RHEL 7.7 X64
- ✔ RHEL 8.0 X64
- ✔ RHEL 8.1 X64
- ✔ RHEL 9
